The strongest and best looking wheels/forged aluminum wheels

Forged Aluminum WheelEvery Aluminum wheel can minus weight about 57% , and about 300KGS  per trailer or truck . It makes  more loading  and comfortable driving.Material ---Aluminum Rod (6061) checked by the ultrasonic flaw detector to ensure materials are free of cracks,pores,corrosion spots and other defects.FORG

Featured Products

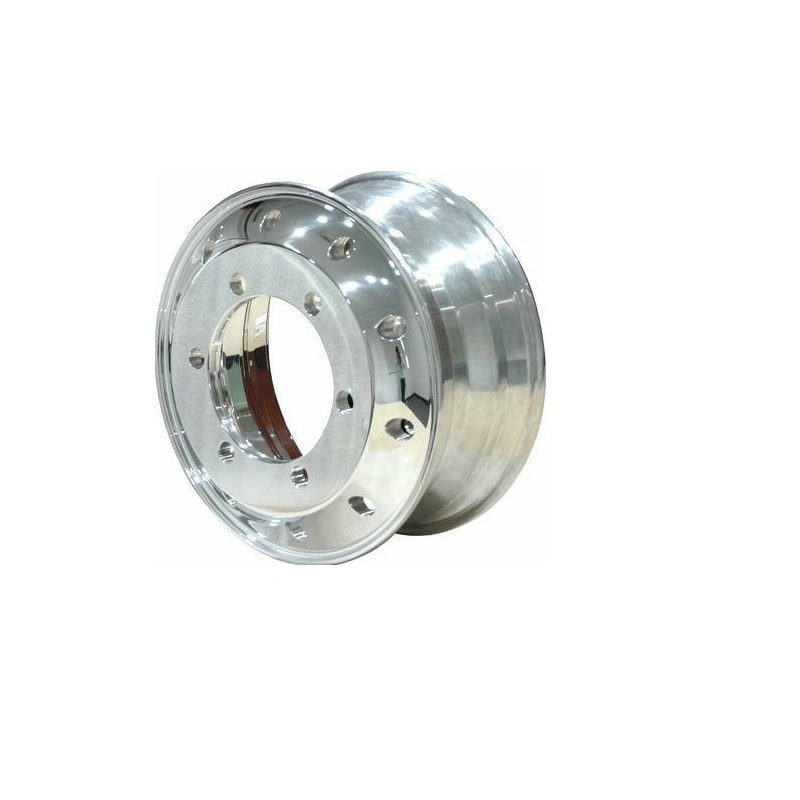

Forged Aluminum Wheel
Strongest and Best Looking Wheel/Forged Aluminum Wheel

Every Aluminum wheel can minus weight about 57% , and about 300KGS  per trailer or truck . It makes  more loading  and comfortable driving.

Strongest and Best Looking Wheel/Forged Aluminum Wheel

Material ---Aluminum Rod (6061) checked by the ultrasonic flaw detector to ensure materials are free of cracks,pores,corrosion spots and other defects.

FORGING PROCESS----  The most advanced 10000T forging machine.
The wheel rim is formed by the three-rotary-wheel and 6-shaft LEIFELD flow forming machine from Germany after the forming process is carried out.

Strongest and Best Looking Wheel/Forged Aluminum Wheel
POLISHING---- In order to gain a better polishing surface, we introduced a series of polishing machines from Spain. It can polish the wheels automatically and stable . Strongest and Best Looking Wheel/Forged Aluminum Wheel
difference between steel and alloy wheels
Points Forged Aluminum WheelSteel WheelAluminum wheel Advantages
1. Weight ~24KGS~45KGShalf lighter than steel one
2. MaterialHigh strength forging alloySteel PlateHigher strength
3. Manufacturing methodRotary forging Stamping , Rolling,Welding Forged from whole blank wheel, no weld-joint
4. Circularity Numerical Control Rolling roundness
5. Dynamic balanceUniform Density smooth-ride in high speed
6. Heat radiationHigh density no bubble ,high conductivity for heat less conductivity for heat expand service life of tyres by 26%
7. Impact resistance test Almost zero demage damage seriouslyhigher safety
8. Rigidityrigid deformable protect tyres from eccentric wear
9. Compression resistance 73000KGS deformed 5CM 13600KGS deformed 5CM High intensity , 5.37times than steel ones
10. AppearancePolished , Fine and Smooth Murky grey , roughPolished , Fine and Smooth
11. Cost3-4times  than steel one low cost 3-4times  than steel one
12. Recycle 95% recycled  95% recycled
13. Environment protect Save 22.9Kg of Co2 per KG of aluminum  Save 22.9Kg of Co2 per KG of aluminum

Strongest and Best Looking Wheel/Forged Aluminum Wheel

Forged Aluminum wheel Specifics
SIZE CBInsetOutset Stud Diameter PCDWeight (KGS)MAX LOAD (LBS)
22.5x7.5281.213816232.5335*1022.27800
22.5x7.522113816232.5R22285*824.17800
22.5x8.25220144.5167.526.75285.75*10227400
22.5x8.25221  32.5R22285.75*1022
22.5x8.25281.2  32335*1022
22.5x9.0022015217726.75285.75*10249090
22.5x9.00281.215217726.75335*10 249090
22.5x9.00281.215217732.5335*10 249090
22.5x11.75281.202226335*10 259915
22.5x11.75281.202226.75335*10 259915
22.5x11.75281.212014626335*10 259915
22.5x11.75281.212014626.75335*10 259915
22.5*1422102226.75285.75*10   34.7513440
17.5x6.0020212014126.75245x6
17.5x6.7520212014126.75245x614.22500KGS
19.5x7.520212014126.75245*6 13.882500KGS
24.5x8.25281.214516832.5335*1029.367900
24.5x8.2522014516826.75285.75*1029.67900
24.5x8.2522114516832.5R22285.75*1027.787900
Strongest and Best Looking Wheel/Forged Aluminum Wheel
 5year-warranty  for all Forged aluminum wheel

Forged Aluminum wheel is the strongest and best looking wheel you can buy .
Strongest and Best Looking Wheel/Forged Aluminum WheelStrongest and Best Looking Wheel/Forged Aluminum WheelStrongest and Best Looking Wheel/Forged Aluminum WheelStrongest and Best Looking Wheel/Forged Aluminum WheelStrongest and Best Looking Wheel/Forged Aluminum WheelStrongest and Best Looking Wheel/Forged Aluminum Wheel
